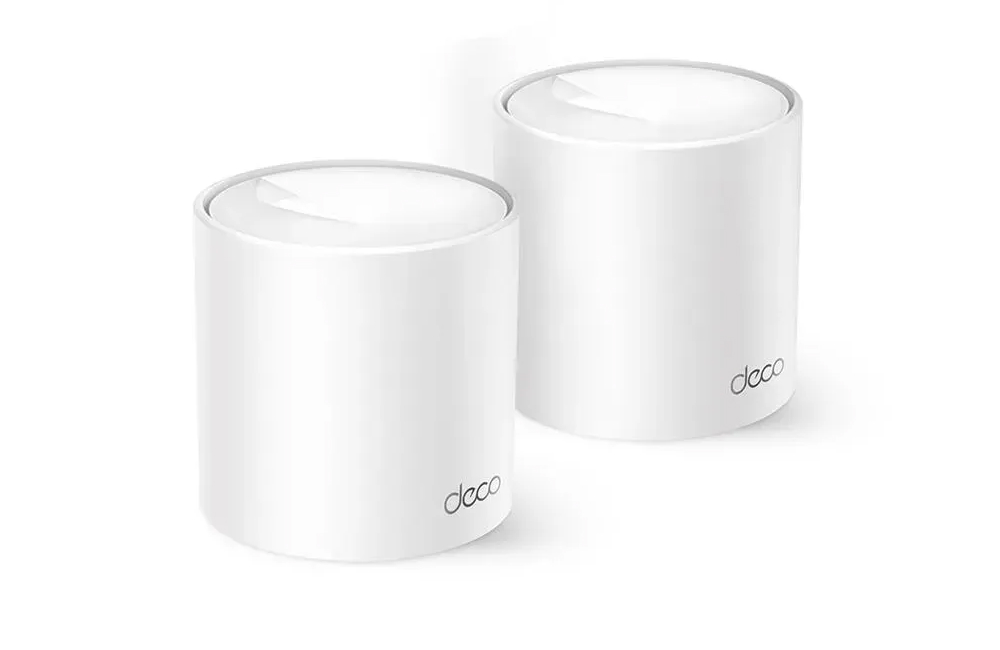

The Deco X10 AX1500 Mesh System provides faster connectivity: Wi-Fi 6 with speeds up to 1500 Mbps (1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz).
Thanks to OFDMA and MU-MIMO technologies, bandwidth is increased by 4 times, allowing more devices to be connected simultaneously.
The Wi-Fi 6 module generates a clearer and more powerful Wi-Fi signal for the entire home, providing enhanced seamless coverage without signal loss throughout the entire area.
Ultra-low latency allows you to comfortably play more ping-sensitive games and communicate in video chats.
Multiple devices in the home are combined into a single unified network that automatically selects the best connection as you move around.
Parental controls and easy setup via the Deco app are available to users.
Standards:
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2,4 GHz
Wi-Fi Speeds:
AX1500
5 GHz: 1201 Mbps (802.11ax)
2,4 GHz: 300 Mbps (802.11n)
Houses with 1-2 bedrooms (1 unit)
Houses with 2-4 bedrooms (2 units)
Houses with 3-5 bedrooms (3 units)
Wi-Fi Range:
TP-Link Mesh Technology
An additional Ethernet transport channel works
together to connect Deco devices for seamless coverage
2 × antennas (internal)
Multiple antennas form a grid to amplify the signal, forming a
beam to cover more directions and larger areas
Beamforming
Focuses wireless signal power on clients to extend Wi-Fi range
Wi-Fi Capacity:
Dual-band
Distribute devices across different bands for optimal performance
2×2 MU-MIMO
Communicates with multiple MU-MIMO clients simultaneously
OFDMA
Communicates with multiple Wi-Fi 6 clients simultaneously
4 Streams
More than enough bandwidth for connected devices
Operating modes:
Router mode
Access point mode
Network Security:
SPI firewall
Access control
Guest Network:
1× 5 GHz guest network
1× 2.4 GHz guest network
Wi-Fi Encryption:
WPA-Personal
WPA2-Personal
WPA3-Personal
Ethernet ports:
2× Gigabit ports
Supports automatic WAN/LAN detection
Buttons:
Reset button
Protocols:
IPv4
IPv6
Parental Controls:
User profiles
Professional content filter library
Family time
Bedtime
Downtime
Time rewards
Family online time rating
Pause the internet
Weekly and monthly reports
Types of WAN:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
QoS (traffic prioritisation):
Device-based QoS
Cloud service:
OTA firmware update
TP-Link ID
DDNS
NAT Forwarding:
Port forwarding
UPnP
IPTV:
IGMP proxy IGMP snooping Bridge VLAN tags
DHCP:
Address reservation DHCP client list Server
DDNS:
TP-Link
Manage Settings:
Deco
Wi-Fi Transmission Power:
CE:
<20 dBm (2,4 GHz)
<30 dBm (5 GHz)
FCC:
<30 dBm (2,4 GHz)
<30 dBm (5 GHz)
Dimensions (W х D х H):
110 × 110 × 114 mm
Delivery Set:
Deco X10 (2 pcs)
2 DX10 units
1 Ethernet RJ45 cable
2 power adapters
Quick Installation Guide
