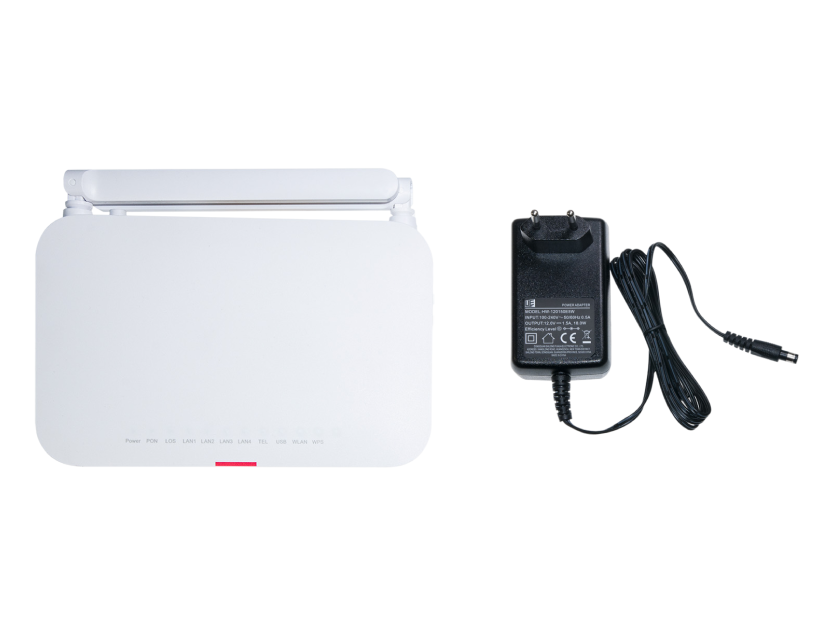

Optical terminal Huawei EG8145X6

Huawei EG8145X6 is a dual-band Wi-Fi router 6 GPON that uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users.

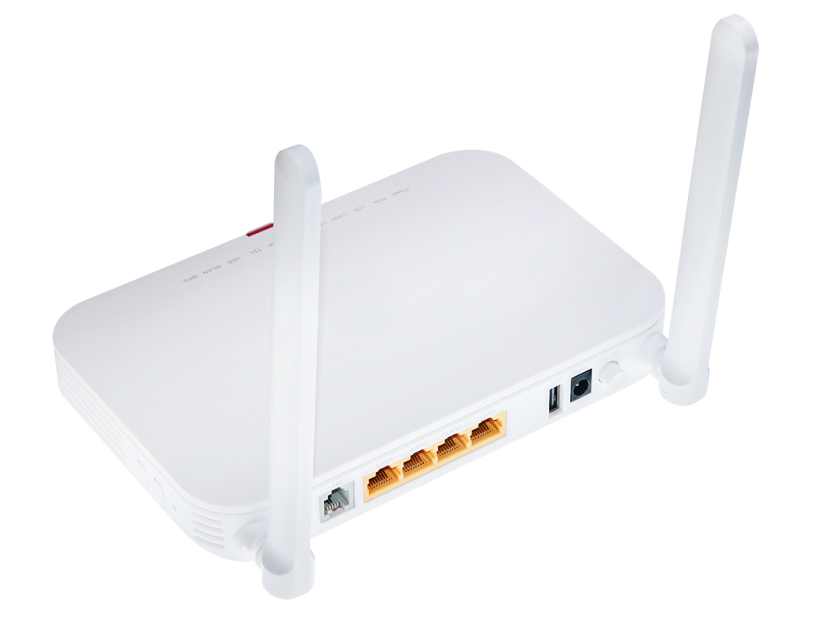

The device features:

• four Gigabit Ethernet ports (10/100/1000 Mbps), which provide high-bandwidth connectivity;
• one RJ11 port, which allows you to connect a landline phone and provide VoIP telephony services to customers;
• one USB 2.0 port, which can be used to create an FTP NAS;
• one SC/APC WAN port;
• 2.4G and 5G Wi-Fi support.

EG8145X6 can be used in the GPON network as a client terminal. It has a class B+ laser, the sensitivity of receiving the transmission is -27 dBm. The ONT supports the G.984.5 standard, the transmission wavelength is 1310nm (upstream) and 1490nm (downstream).

The network is broadcast in the 2.4 and 5 GHz bands simultaneously, the device uses the standards IEEE 802.11 b/g/n/ax (2.4 GHz) and IEEE 802.11 a/n/ac/ax (5 GHz). The maximum transmission throughput is 547 Mbit/s in 2.4 GHz and 1000 Mbit/s in 5 GHz.

The ONT terminal supports 2x2 MIMO, MU-MIMO (simultaneous transmitting and receiving data from multiple client devices) and Beamforming. An additional advantage is WPA3 — the latest data encryption standard that secures wireless transmission. Two external omnidirectional antennas are responsible for broadcasting the network, both of them have a gain of 5 dBi. Key devices such as a game console or a PC should be connected directly to the ONT with a cable.
